Water Pumping Solution & Products

Solar Water Pumping Controller

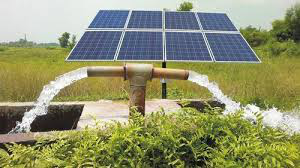

Solar pump controller is specially designed electronics to run the solar pump through solar power.

It will get maximum possible power from solar panel for particular point of time by using maximum power point tracking (MPPT) Algorithm. It also controls all the parameters to run the pump in safe environment and provide many useful protections like, dry run, over voltage, under voltage, reverse polarity etc

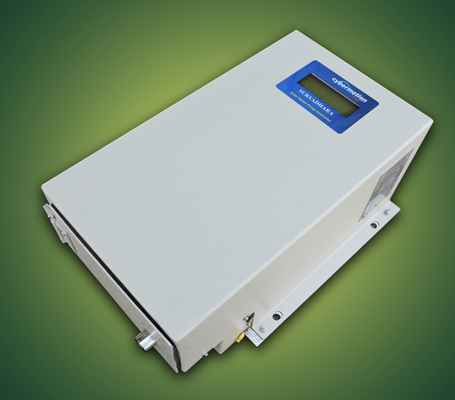

Tatva iNTELLI-Flow is a smart solar pump controller the best possible energy utilization and efficiency. Coupled with remote monitoring, diagnostics and remote issue resolution capabilities, Tatva iNTELLI-Flow is serving a huge solar irrigation market in India and overseas.

Power produced by Solar PV panels will be delivered to VFD based controller, which converts the DC power to AC power to operate water pump. The Solar water pump controller automatically regulates output frequency and speed of motor according to solar radiation intensity with built in MPPT tracking function. It is compatible with both linear and non-linear loads.

In case of DC motor pumps, power from solar array is regulated by the DC charge cum controller to drive the DC water pump with built in MPPT tracking function.

We provide the most intelligent web based analytics with Tatva iNTELLI-Flow. Tatva iNTELLI-Flow analytics are powered through proprietary algorithms that track the performance of each system on ground. This is done by generating data minute by minute and logging it over our web servers via GPRS.

Our highly interactive web interface lets you live track the rudimentary as well as advance aspects of your solar pumping systems. This includes live-tracking of frequency, power consumption, motor current, PV voltage, MPPT performance and more. Our analytics engine helps system integrators in tracking the performance of their system. They can get a daily report on issues that may have occurred in the systems ensuring quick response times and reduced service costs.

Features

  • Designed and developed as per MNRE guidelines.
  • 1 hp to 10 hp capacity.
  • True MPPT algorithm. Dynamic and fast response with above 98% efficiency.
  • Many VFDs implement tracking a fixed Voltage at Maximum Power Point (Vmpp) resulting poor efficiency. This is pseudo MPPT algorithm. (adjust figure).
  • Auto ON/OFF with sunrise and sunset.
  • IP54 rated enclosure. The enclosure is sealed, with IP65 rated external fans.
  • Can operate without fans due to extra sized heat sink and high electrical efficiency.
  • Heavy duty circuit breaker for solar DC ON/OFF.
  • Pump blockage detection and auto unjamming.
  • Smart remote Monitoring using GPRS with Predictive Maintenance features to reduce Operations & Maintenance costs.
  • Cloud based customer support software.
  • Easy to Install (plug and play type), avoiding of setting in the field during installation.
  • Modular construction & Low heat dissipation, assuring long time operation.
  • Stream lined design and rugged.
  • Proven reliability and low maintenance.
  • Optimized Energy Harvest & Unparalleled Performance.

Protection

  • Output overload
  • Short circuit
  • Open circuit
  • Dry run (sensorless)
  • Pump blockage
  • Over temperature
  • Reverse polarity
  • Surge voltage due to lightening

Predictive Maintenance with Smart Remote Monitoring

A Cloud based Monitoring and Control system for large number of solar water pumping systems distributed across geographical regions . It can perform Analytics and Machine Learning algorithms to infer critical information from the basic data sent by each installation.

  • Basic data from each solar pump : Vdc, Idc, Pdc, , Iac , temperature of drive.
  • Estimated parameters : Pdc, KWhr, LPM, LPD, Total running time.
  • Detection based on Analytics :Partial shading , Dirty solar panels, Improper MPPT, Improper selection of sub-system .

Technical Specifications of Tatva iNTELLI-Flow controller

Controller Capacity 3 HP 3 HP 5 HP 7.5 HP
Pump Class 230 V AC, 3 phase 415 V AC, 3 phase 415 V AC, 3 phase 415 V AC, 3 phase
Open Circuit Voltage (Voc) DC 480 V 780 V 780 V 780 V
MPPT Voltage Range DC 300 V - 430 V 480 V - 650 V 480 V - 650 V 520 V - 650 V
Maximum Input Current (Impp) 10 A 7 A 10 A 14 A
Maximum Solar Array Power 3.3 KW 3.3 KW 5.5 KW 8.0 KW
Output AC Voltage 3 phase 0 - 230 V AC 0 - 415 V AC 0 - 415 V AC 0 - 415 V AC
Output Current (max.) 9.6 A 5.6 A 9.2 A 14 A
Output Frequency Range (Hz) 0 - 50 Hz 0 - 50 Hz 0 - 50 Hz 0 - 50 Hz
IP Standard Ip54 Ip54 Ip54 Ip54
Weight 7.65 Kg 7.65 Kg 7.65 Kg 7.65 Kg
Dimensions 407X267X182 mm3 407X267X182 mm3 407X267X182 mm3 407X267X182 mm3
